Bosch Rexroth Variable Plug-in Motor A6VE Series 63 agricultural machinery, ships, etc.

Features
––Variable plug-in motor with axial tapered piston rotary group
of bent-axis design, for hydrostatic drives in open and closed
circuits
––Far-reaching integration in mechanical gearbox due to a
recessed mounting flange located on the center of the case
(extremely space-saving construction)
––Easy to install, simply plug into the mechanical gearbox (no
configuration specifications to be observed)
––Tested unit ready to install
––For use especially in mobile applications
––The displacement can be infinitely changed from
Vg max to Vg min = 0.
––The wide control range enables the variable motor to satisfy
the requirement for high speed and high torque.
––The output speed is dependent on the flow of the pump and
the displacement of the motor.
––The output torque increases with the pressure differential
between the high-pressure and low-pressure side and with
increasing displacement.

For more detailed parameters of A6VE and other models, please contact our sales staf

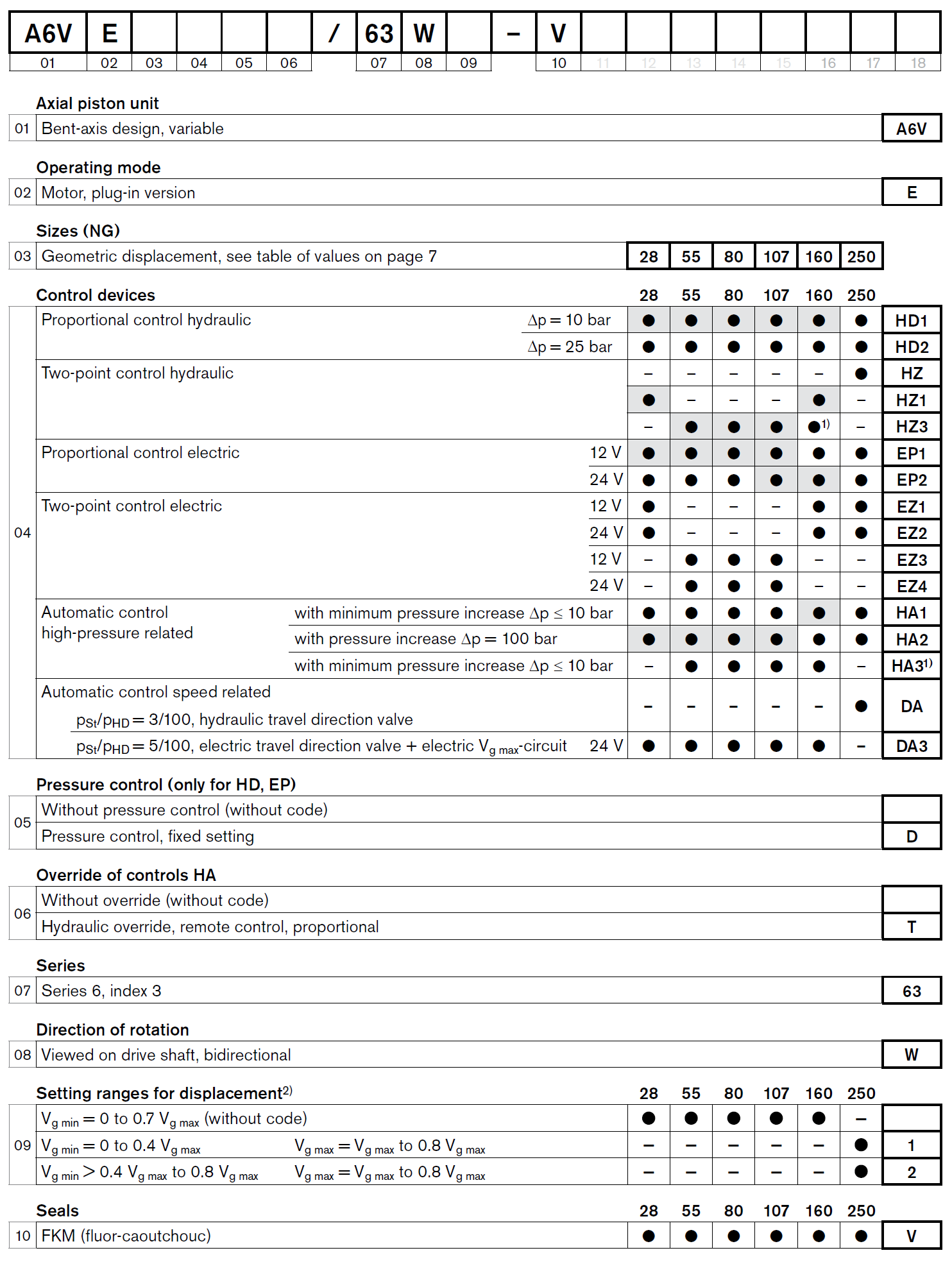

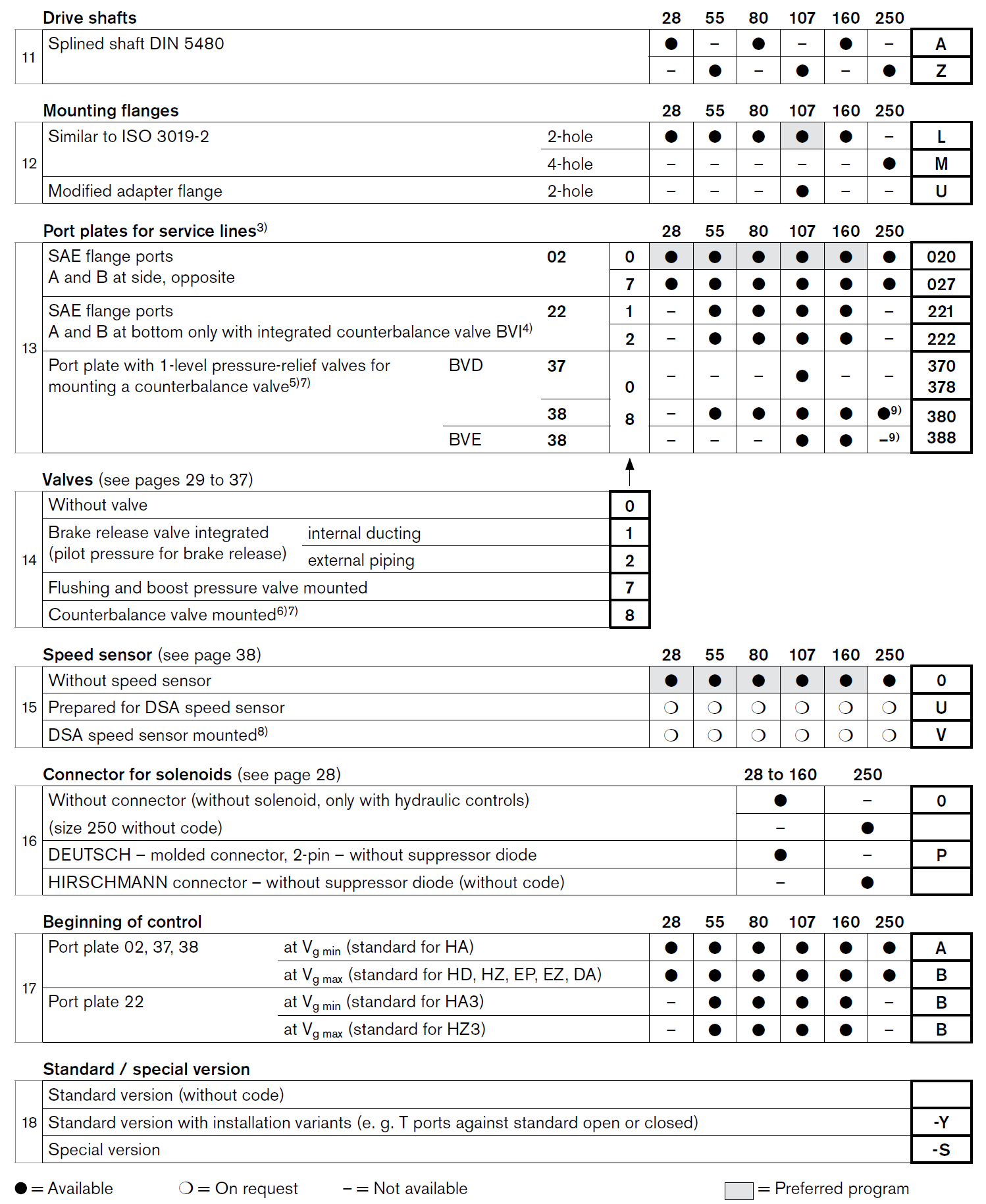

Type code

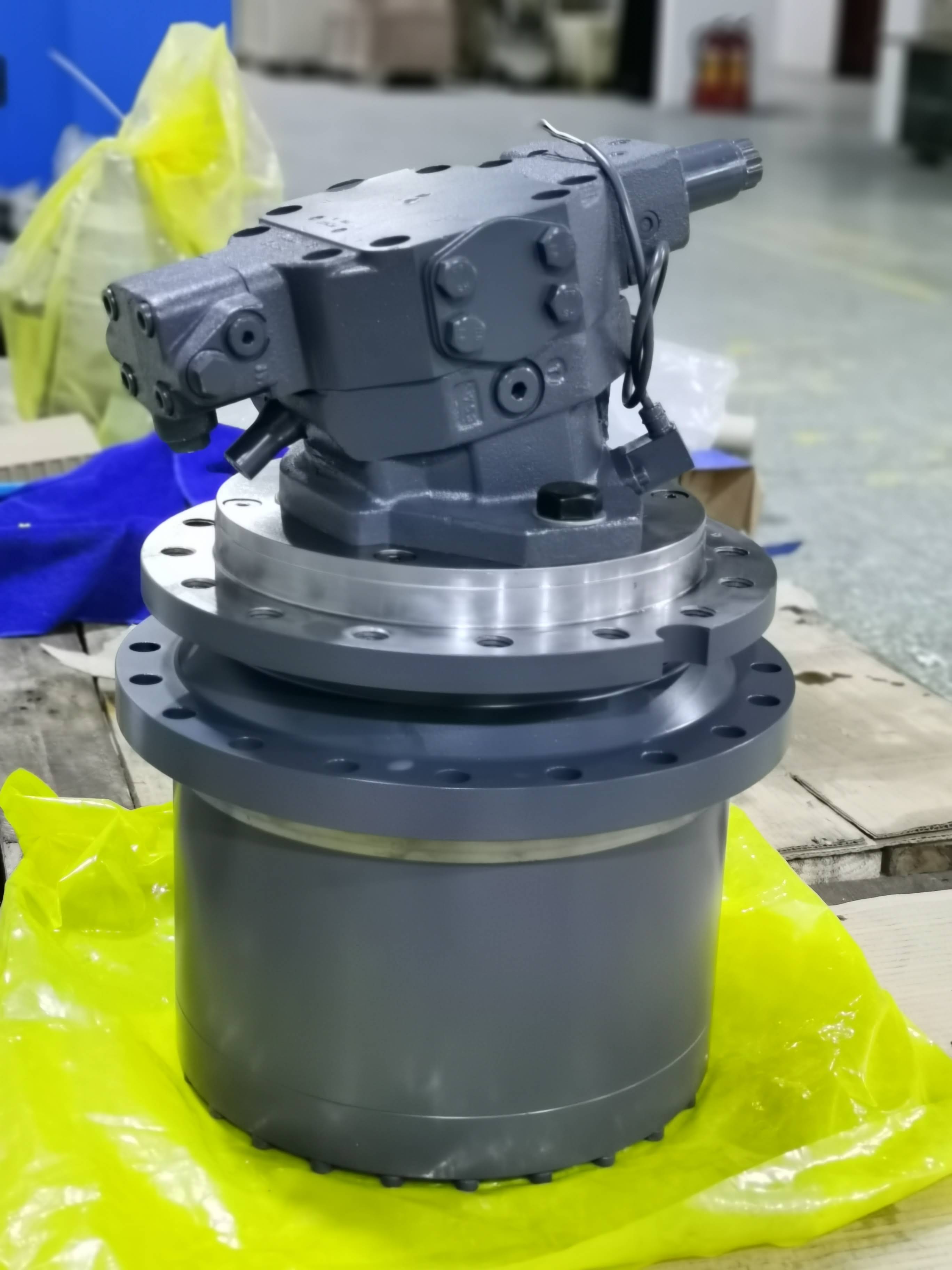

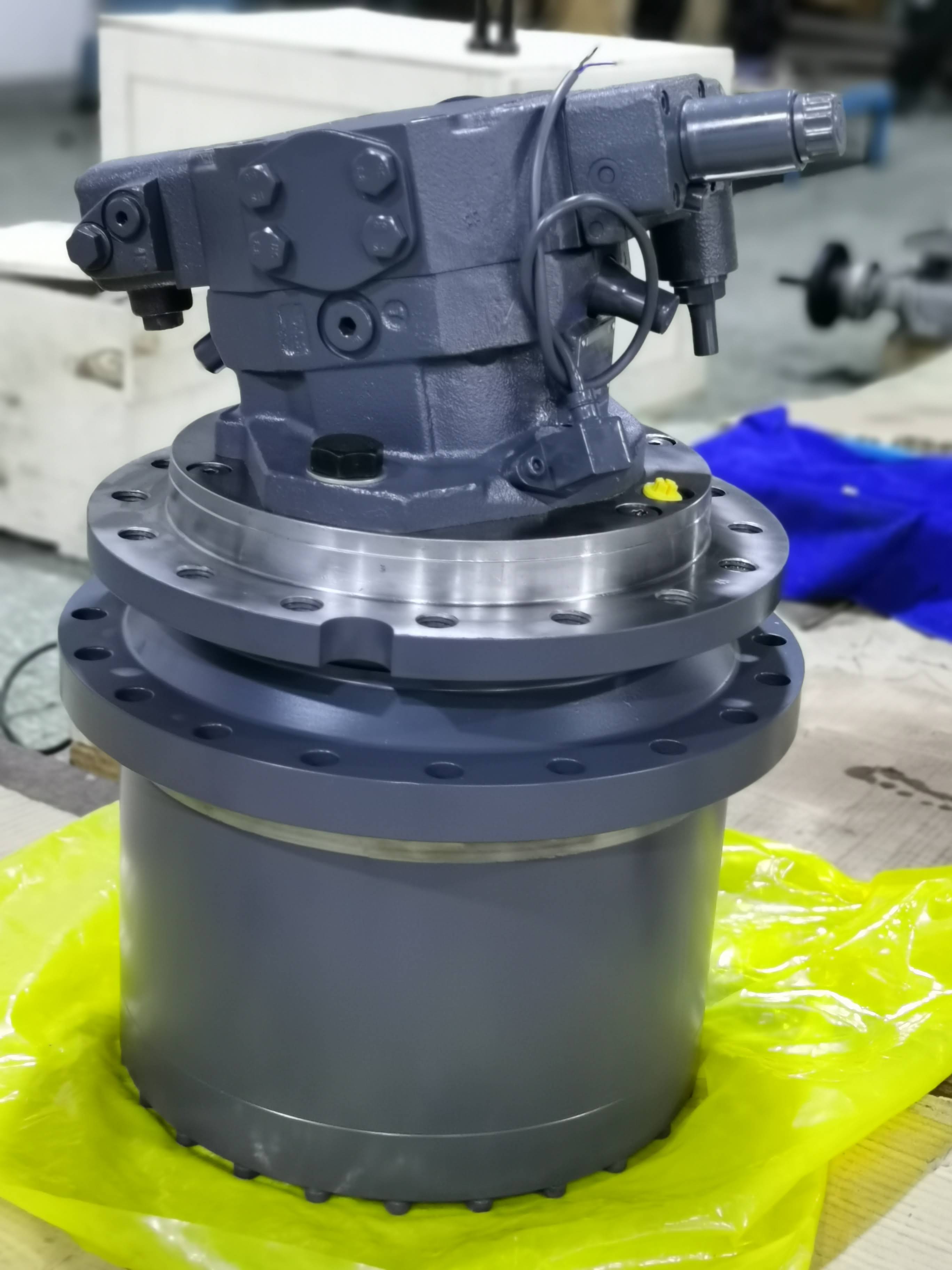

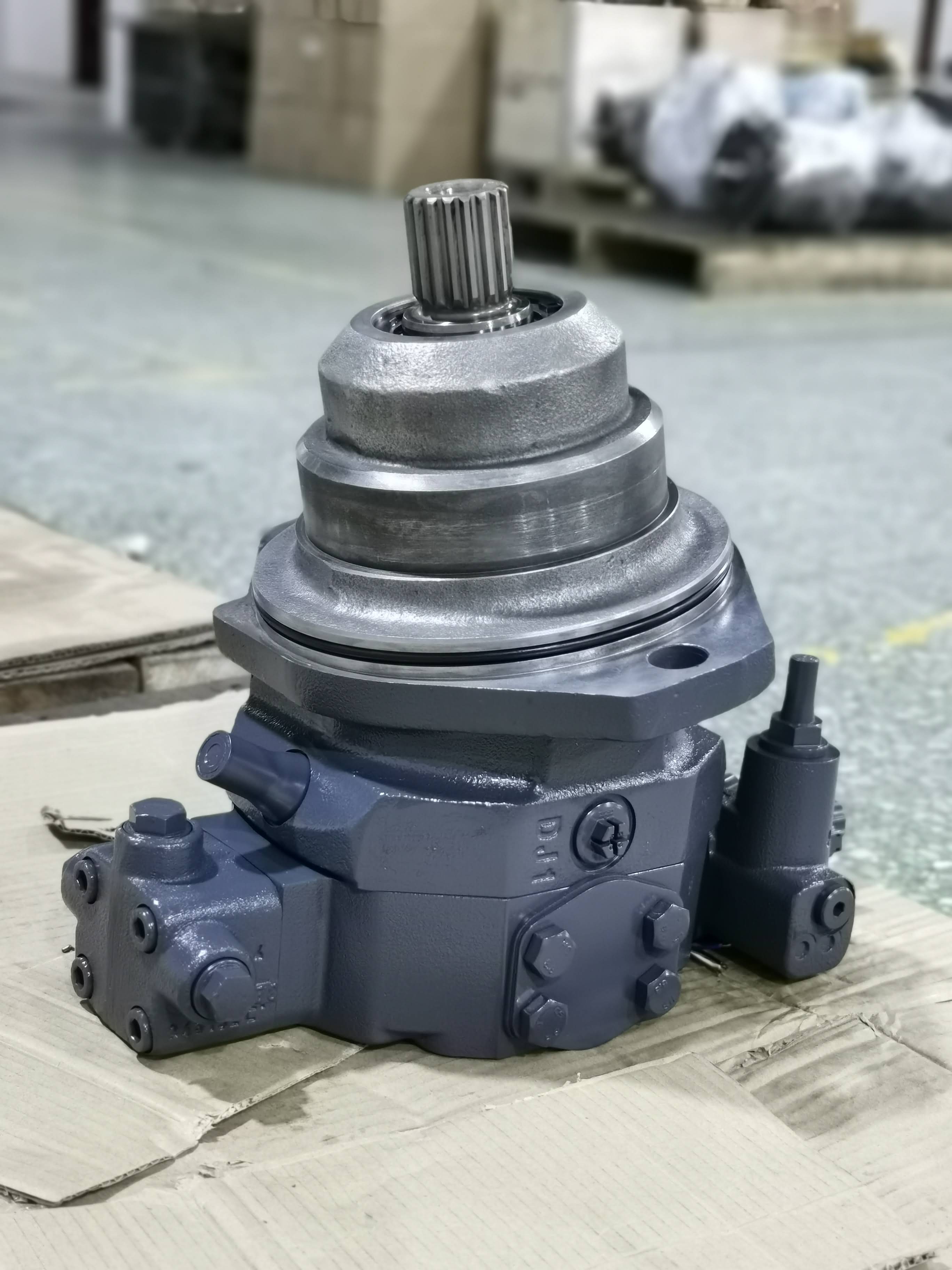

Finished product display

Bosch Rexroth Variable Plug-in Motor

agricultural machinery Plug-in Motor

A6VE Series 63 Plug-in Motor

Bosch Rexroth Variable Plug-in Motor A6VE Series 63 Agricultural Machinery , Ships , Etc. Images
